PICKLEBALL COURT
COURT GUIDE
What a pickleball court looks like
Court dimensions, net height and surface types — a reference for newcomers and for schools or organizations setting up a court. Pickleball Korea does not build courts; this page is for information only.
Court dimensions
Per USA Pickleball / IFP rules. Singles and doubles use the same court.
- COURT SIZE
- 13.41 m × 6.10 m (44 ft × 20 ft)
- NET HEIGHT
- 91.4 cm at the posts · 86.4 cm at center
- NON-VOLLEY ZONE (KITCHEN)
- 2.13 m (7 ft) from the net
- RECOMMENDED PLAYING AREA
- At least 18.29 m × 9.14 m (60 ft × 30 ft)
Surface types (reference)
Indoor gyms usually add lines on wood/urethane or lay a roll-out floor; outdoors an acrylic hard court is typical. Below are example specs for roll-out floors.

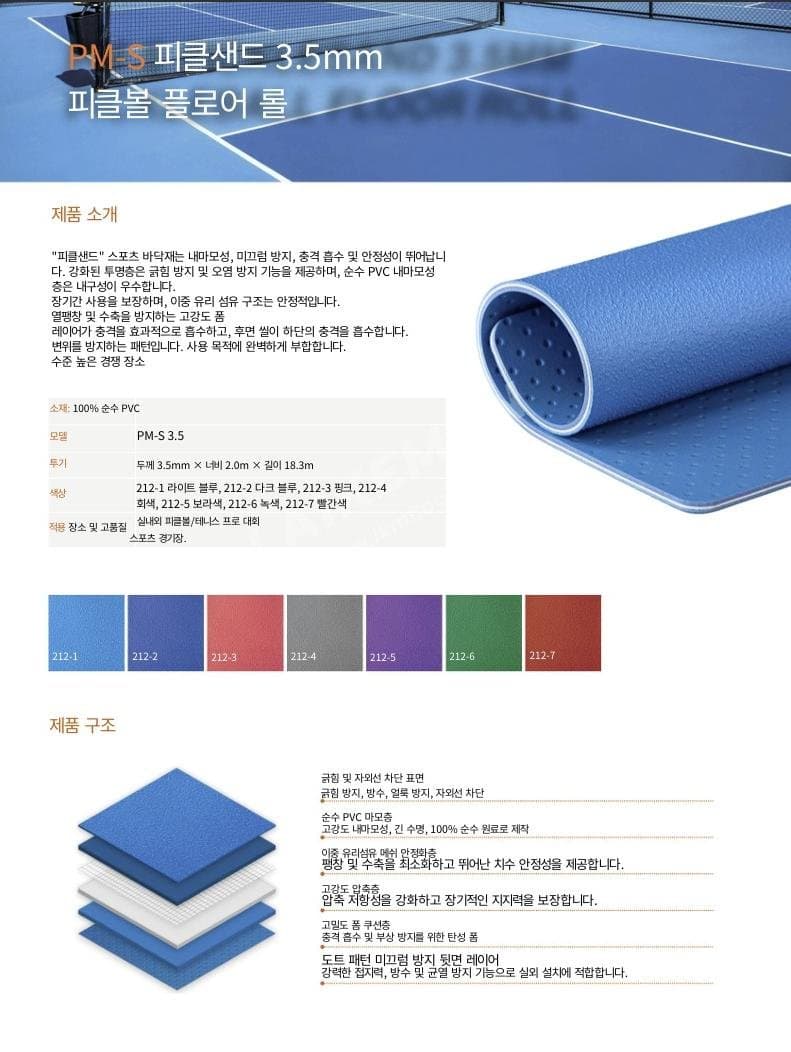

PICKLESAND · PM-S 3.5
PickleSand 3.5mm floor roll
A sports floor built for durability, grip and shock absorption. A hardened clear layer resists scratches and stains, while dual fiberglass stabilization and a high-density foam layer absorb impact.
- MATERIAL
- 100% pure PVC
- DIMENSIONS
- 3.5mm thick × 2.0m wide × 18.3m long
- USE
- Indoor/outdoor pickleball & tennis competition venues
- COLORS (7)
- 212-1212-2212-3212-4212-5212-6212-7

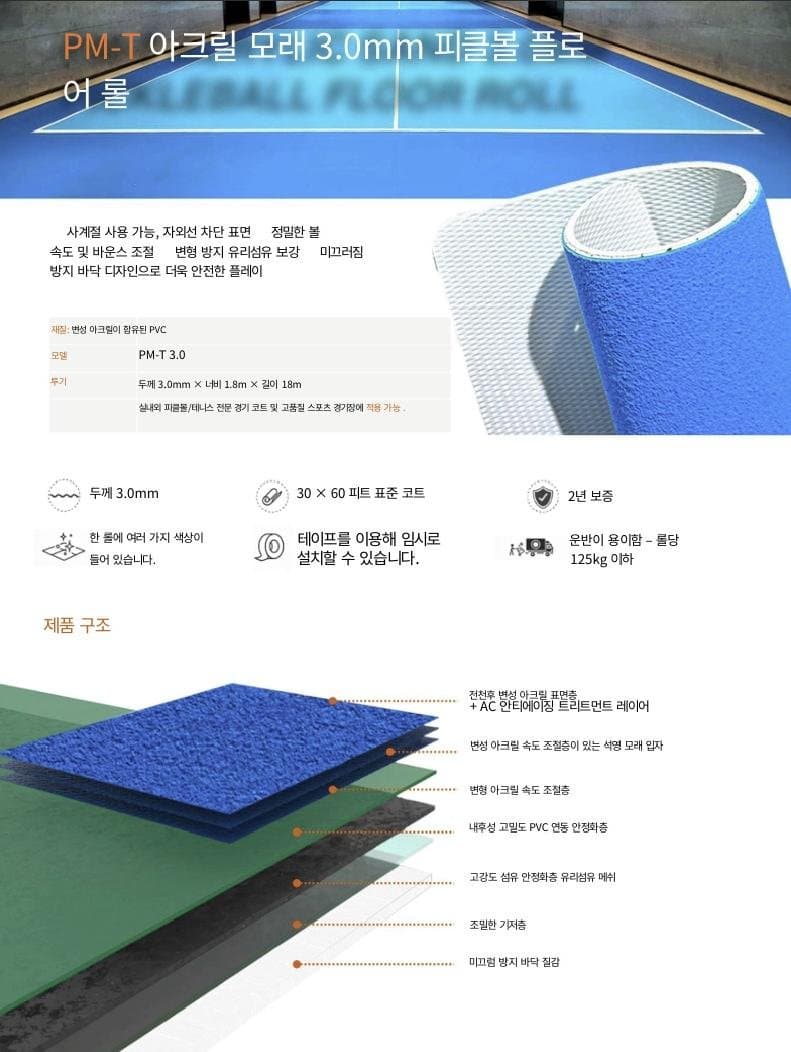

ACRYLIC SAND · PM-T 3.0
Acrylic-sand 3.0mm floor roll
An all-season modified-acrylic surface with precise ball speed and bounce. Fiberglass reinforcement prevents deformation; the anti-slip backing keeps play safe.
- MATERIAL
- Modified-acrylic PVC
- DIMENSIONS
- 3.0mm thick × 1.8m wide × 18m long
- USE
- Indoor/outdoor competition courts and premium sports venues
- NOTES
- Tape-down temporary install · under 125kg per roll · sized for a 30×60ft court · multiple colors per roll
